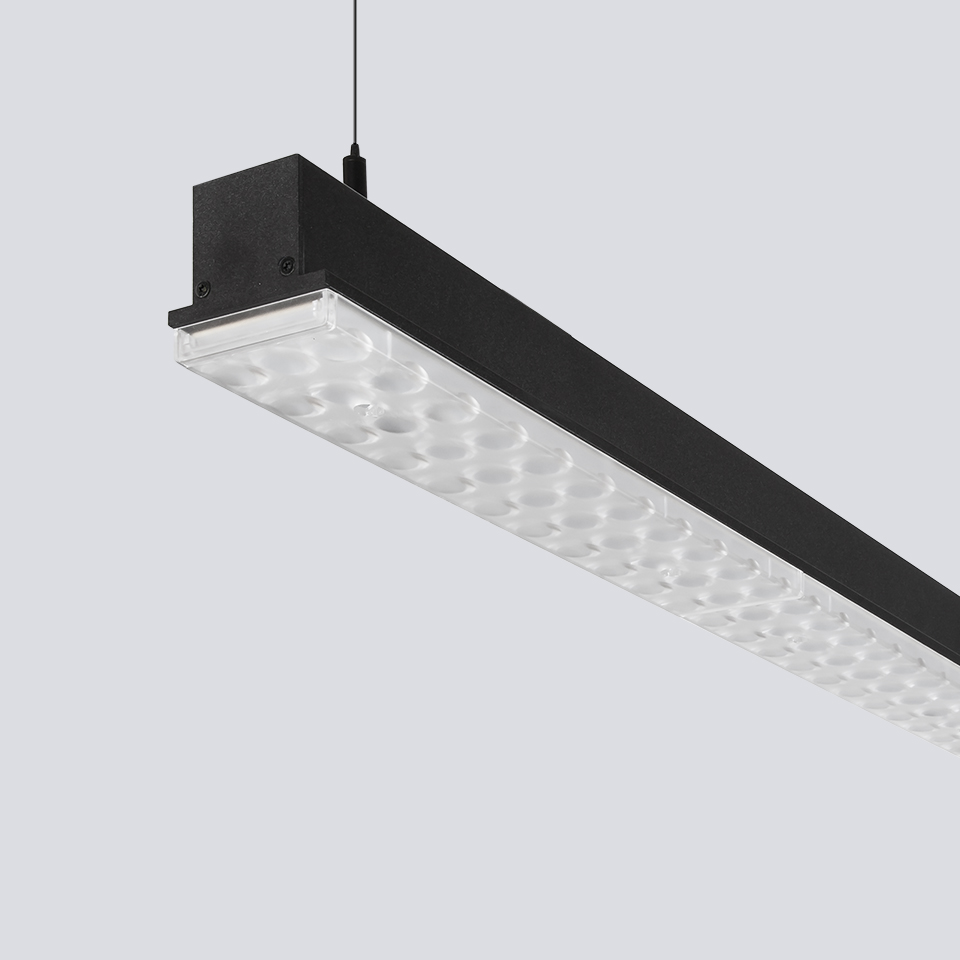

Aluminium profile with optics available in different beam angles. High-performance LED integration for architectural applications

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
ADDITIONAL INFORMATION
Socket: LED
Colour Temperature: 4000K
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Pixel 4000K PIXXA05D46ABS Satin Black LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA05D46AWS Satin White LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA05D46BBS Satin Black LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA05D46BWS Satin White LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA05D47ABS Satin Black LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K RSº >80 173 lm/W
Pixel 4000K PIXXA05D47AWS Satin White LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K RSº >80 173 lm/W
Pixel 4000K PIXXA05D47BBS Satin Black LED ≈ 23W / >3.500 lm Dali — 4000K Retail Symmetricº — —
Pixel 4000K PIXXA05D47BWS Satin White LED ≈ 23W / >3.500 lm Dali — 4000K Retail Symmetricº — —
Pixel 4000K PIXXA05D49ABS Satin Black LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K >90º >80 173 lm/W
Pixel 4000K PIXXA05D49AWS Satin White LED ≈ 23W / >3.500 lm Dali 3.780 lm 4000K >90º >80 173 lm/W
Pixel 4000K PIXXA05D49BBS Satin Black LED ≈ 23W / >3.500 lm Dali — 4000K >90º — —
Pixel 4000K PIXXA05D49BWS Satin White LED ≈ 23W / >3.500 lm Dali — 4000K >90º — —
Pixel 4000K PIXXA05N46ABS Satin Black LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA05N46AWS Satin White LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA05N46BBS Satin Black LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA05N46BWS Satin White LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA05N47ABS Satin Black LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K RSº >80 173 lm/W
Pixel 4000K PIXXA05N47AWS Satin White LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K RSº >80 173 lm/W
Pixel 4000K PIXXA05N47BBS Satin Black LED ≈ 23W / >3.500 lm No Dimmable — 4000K Retail Symmetricº — —
Pixel 4000K PIXXA05N47BWS Satin White LED ≈ 23W / >3.500 lm No Dimmable — 4000K Retail Symmetricº — —
Pixel 4000K PIXXA05N49ABS Satin Black LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K >90º >80 173 lm/W
Pixel 4000K PIXXA05N49AWS Satin White LED ≈ 23W / >3.500 lm No Dimmable 3.780 lm 4000K >90º >80 173 lm/W
Pixel 4000K PIXXA05N49BBS Satin Black LED ≈ 23W / >3.500 lm No Dimmable — 4000K >90º — —
Pixel 4000K PIXXA05N49BWS Satin White LED ≈ 23W / >3.500 lm No Dimmable — 4000K >90º — —
Pixel 4000K PIXXA11D46ABS Satin Black LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA11D46AWS Satin White LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA11D46BBS Satin Black LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA11D46BWS Satin White LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA11D47ABS Satin Black LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K RSº >80 173 lm/W
Pixel 4000K PIXXA11D47AWS Satin White LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K RSº >80 173 lm/W
Pixel 4000K PIXXA11D47BBS Satin Black LED ≈ 46W / >7.000 lm Dali — 4000K Retail Symmetricº — —
Pixel 4000K PIXXA11D47BWS Satin White LED ≈ 46W / >7.000 lm Dali — 4000K Retail Symmetricº — —
Pixel 4000K PIXXA11D49ABS Satin Black LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K >90º >80 173 lm/W
Pixel 4000K PIXXA11D49AWS Satin White LED ≈ 46W / >7.000 lm Dali 7.560 lm 4000K >90º >80 173 lm/W
Pixel 4000K PIXXA11D49BBS Satin Black LED ≈ 46W / >7.000 lm Dali — 4000K >90º — —
Pixel 4000K PIXXA11D49BWS Satin White LED ≈ 46W / >7.000 lm Dali — 4000K >90º — —
Pixel 4000K PIXXA11N46ABS Satin Black LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA11N46AWS Satin White LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA11N46BBS Satin Black LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA11N46BWS Satin White LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA11N47ABS Satin Black LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K RSº >80 173 lm/W
Pixel 4000K PIXXA11N47AWS Satin White LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K RSº >80 173 lm/W
Pixel 4000K PIXXA11N47BBS Satin Black LED ≈ 46W / >7.000 lm No Dimmable — 4000K Retail Symmetricº — —
Pixel 4000K PIXXA11N47BWS Satin White LED ≈ 46W / >7.000 lm No Dimmable — 4000K Retail Symmetricº — —
Pixel 4000K PIXXA11N49ABS Satin Black LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K >90º >80 173 lm/W
Pixel 4000K PIXXA11N49AWS Satin White LED ≈ 46W / >7.000 lm No Dimmable 7.560 lm 4000K >90º >80 173 lm/W
Pixel 4000K PIXXA11N49BBS Satin Black LED ≈ 46W / >7.000 lm No Dimmable — 4000K >90º — —
Pixel 4000K PIXXA11N49BWS Satin White LED ≈ 46W / >7.000 lm No Dimmable — 4000K >90º — —
Pixel 4000K PIXXA17D46ABS Satin Black LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA17D46AWS Satin White LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA17D46BBS Satin Black LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA17D46BWS Satin White LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA17D47ABS Satin Black LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K RSº >80 173 lm/W
Pixel 4000K PIXXA17D47AWS Satin White LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K RSº >80 173 lm/W
Pixel 4000K PIXXA17D47BBS Satin Black LED ≈ 69W / >10.500 lm Dali — 4000K Retail Symmetricº — —
Pixel 4000K PIXXA17D47BWS Satin White LED ≈ 69W / >10.500 lm Dali — 4000K Retail Symmetricº — —
Pixel 4000K PIXXA17D49ABS Satin Black LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K >90º >80 173 lm/W
Pixel 4000K PIXXA17D49AWS Satin White LED ≈ 69W / >10.500 lm Dali 11.340 lm 4000K >90º >80 173 lm/W
Pixel 4000K PIXXA17D49BBS Satin Black LED ≈ 69W / >10.500 lm Dali — 4000K >90º — —
Pixel 4000K PIXXA17D49BWS Satin White LED ≈ 69W / >10.500 lm Dali — 4000K >90º — —
Pixel 4000K PIXXA17N46ABS Satin Black LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA17N46AWS Satin White LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA17N46BBS Satin Black LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA17N46BWS Satin White LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K >60º >80 173 lm/W
Pixel 4000K PIXXA17N47ABS Satin Black LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K RSº >80 173 lm/W
Pixel 4000K PIXXA17N47AWS Satin White LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K RSº >80 173 lm/W
Pixel 4000K PIXXA17N47BBS Satin Black LED ≈ 69W / >10.500 lm No Dimmable — 4000K Retail Symmetricº — —
Pixel 4000K PIXXA17N47BWS Satin White LED ≈ 69W / >10.500 lm No Dimmable — 4000K Retail Symmetricº — —
Pixel 4000K PIXXA17N49ABS Satin Black LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K >90º >80 173 lm/W
Pixel 4000K PIXXA17N49AWS Satin White LED ≈ 69W / >10.500 lm No Dimmable 11.340 lm 4000K >90º >80 173 lm/W
Pixel 4000K PIXXA17N49BBS Satin Black LED ≈ 69W / >10.500 lm No Dimmable — 4000K >90º — —
Pixel 4000K PIXXA17N49BWS Satin White LED ≈ 69W / >10.500 lm No Dimmable — 4000K >90º — —
