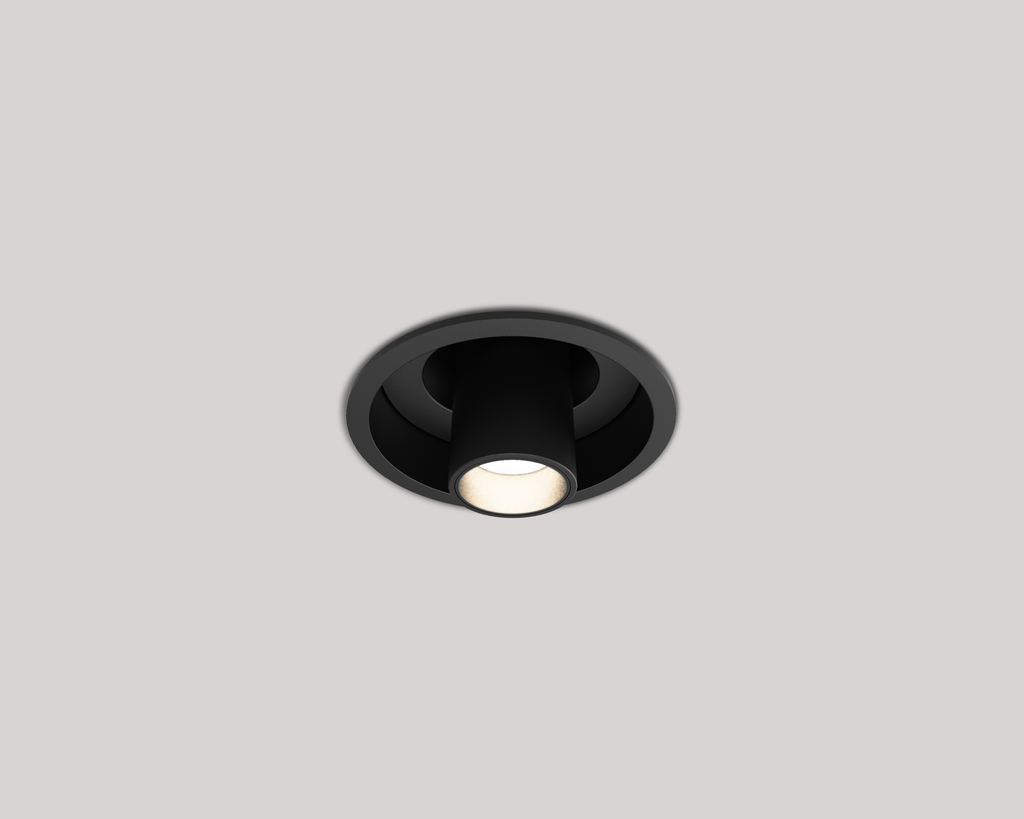

ORBIT

https://onoklighting.com/web/image/product.template/10666/image_1920?unique=affed53

Modular y adaptable

El sistema de iluminación Orbit combina diseño, función y versatilidad. Disponible en cuatro tamaños distintos, permite configurar la luz con precisión y estilo para destacar volúmenes, materiales o ambientes completos.


  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Socket: LED
Beam Angle: 24º
Complements: Ice Diffuser
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
ORBIT 2700K ORBTA01D22ABS Satin Black LED 01/4W 53mm Dali 373 lm 2700K 24º >90 107 lm/W
ORBIT 2700K ORBTA01D22AWS Satin White LED 01/4W 53mm Dali 373 lm 2700K 24º >90 107 lm/W
ORBIT 3000K ORBTA01D32ABS Satin Black LED 01/4W 53mm Dali 390 lm 3000K 24º >90 111 lm/W
ORBIT 3000K ORBTA01D32AWS Satin White LED 01/4W 53mm Dali 390 lm 3000K 24º >90 111 lm/W
ORBIT 4000K ORBTA01D42ABS Satin Black LED 01/4W 53mm Dali 412 lm 4000K 24º >90 118 lm/W
ORBIT 4000K ORBTA01D42AWS Satin White LED 01/4W 53mm Dali 412 lm 4000K 24º >90 118 lm/W
ORBIT 2700K ORBTA01N22ABS Satin Black LED 01/4W 53mm No Dimmable 373 lm 2700K 24º >90 107 lm/W
ORBIT 2700K ORBTA01N22AWS Satin White LED 01/4W 53mm No Dimmable 373 lm 2700K 24º >90 107 lm/W
ORBIT 3000K ORBTA01N32ABS Satin Black LED 01/4W 53mm No Dimmable 390 lm 3000K 24º >90 111 lm/W
ORBIT 3000K ORBTA01N32AWS Satin White LED 01/4W 53mm No Dimmable 390 lm 3000K 24º >90 111 lm/W
ORBIT 4000K ORBTA01N42ABS Satin Black LED 01/4W 53mm No Dimmable 412 lm 4000K 24º >90 118 lm/W
ORBIT 4000K ORBTA01N42AWS Satin White LED 01/4W 53mm No Dimmable 412 lm 4000K 24º >90 118 lm/W
ORBIT 2700K ORBTA02D22ABS Satin Black LED 02/5W 500mm Dali 560 lm 2700K 24º >90 104 lm/W
ORBIT 2700K ORBTA02D22AWS Satin White LED 02/5W 500mm Dali 560 lm 2700K 24º >90 104 lm/W
ORBIT 3000K ORBTA02D32ABS Satin Black LED 02/5W 500mm Dali 585 lm 3000K 24º >90 108 lm/W
ORBIT 3000K ORBTA02D32AWS Satin White LED 02/5W 500mm Dali 585 lm 3000K 24º >90 108 lm/W
ORBIT 4000K ORBTA02D42ABS Satin Black LED 02/5W 500mm Dali 618 lm 4000K 24º >90 114 lm/W
ORBIT 4000K ORBTA02D42AWS Satin White LED 02/5W 500mm Dali 618 lm 4000K 24º >90 114 lm/W
ORBIT 2700K ORBTA02N22ABS Satin Black LED 02/5W 500mm No Dimmable 560 lm 2700K 24º >90 104 lm/W
ORBIT 2700K ORBTA02N22AWS Satin White LED 02/5W 500mm No Dimmable 560 lm 2700K 24º >90 104 lm/W
ORBIT 3000K ORBTA02N32ABS Satin Black LED 02/5W 500mm No Dimmable 585 lm 3000K 24º >90 108 lm/W
ORBIT 3000K ORBTA02N32AWS Satin White LED 02/5W 500mm No Dimmable 585 lm 3000K 24º >90 108 lm/W
ORBIT 4000K ORBTA02N42ABS Satin Black LED 02/5W 500mm No Dimmable 618 lm 4000K 24º >90 114 lm/W
ORBIT 4000K ORBTA02N42AWS Satin White LED 02/5W 500mm No Dimmable 618 lm 4000K 24º >90 114 lm/W
ORBIT 2700K ORBTA03D22ABS Satin Black LED 03/5W 700mm Dali 560 lm 2700K 24º >90 104 lm/W
ORBIT 2700K ORBTA03D22AWS Satin White LED 03/5W 700mm Dali 560 lm 2700K 24º >90 104 lm/W
ORBIT 3000K ORBTA03D32ABS Satin Black LED 03/5W 700mm Dali 585 lm 3000K 24º >90 108 lm/W
ORBIT 3000K ORBTA03D32AWS Satin White LED 03/5W 700mm Dali 585 lm 3000K 24º >90 108 lm/W
ORBIT 4000K ORBTA03D42ABS Satin Black LED 03/5W 700mm Dali 618 lm 4000K 24º >90 114 lm/W
ORBIT 4000K ORBTA03D42AWS Satin White LED 03/5W 700mm Dali 618 lm 4000K 24º >90 114 lm/W
ORBIT 2700K ORBTA03N22ABS Satin Black LED 03/5W 700mm No Dimmable 560 lm 2700K 24º >90 104 lm/W
ORBIT 2700K ORBTA03N22AWS Satin White LED 03/5W 700mm No Dimmable 560 lm 2700K 24º >90 104 lm/W
ORBIT 3000K ORBTA03N32ABS Satin Black LED 03/5W 700mm No Dimmable 585 lm 3000K 24º >90 108 lm/W
ORBIT 3000K ORBTA03N32AWS Satin White LED 03/5W 700mm No Dimmable 585 lm 3000K 24º >90 108 lm/W
ORBIT 4000K ORBTA03N42ABS Satin Black LED 03/5W 700mm No Dimmable 618 lm 4000K 24º >90 114 lm/W
ORBIT 4000K ORBTA03N42AWS Satin White LED 03/5W 700mm No Dimmable 618 lm 4000K 24º >90 114 lm/W
ORBIT 2700K ORBTA04D22ABS Satin Black LED 04/5W 1000mm Dali 560 lm 2700K 24º >90 104 lm/W
ORBIT 2700K ORBTA04D22AWS Satin White LED 04/5W 1000mm Dali 560 lm 2700K 24º >90 104 lm/W
ORBIT 3000K ORBTA04D32ABS Satin Black LED 04/5W 1000mm Dali 585 lm 3000K 24º >90 108 lm/W
ORBIT 3000K ORBTA04D32AWS Satin White LED 04/5W 1000mm Dali 585 lm 3000K 24º >90 108 lm/W
ORBIT 4000K ORBTA04D42ABS Satin Black LED 04/5W 1000mm Dali 618 lm 4000K 24º >90 114 lm/W
ORBIT 4000K ORBTA04D42AWS Satin White LED 04/5W 1000mm Dali 618 lm 4000K 24º >90 114 lm/W
ORBIT 2700K ORBTA04N22ABS Satin Black LED 04/5W 1000mm No Dimmable 560 lm 2700K 24º >90 104 lm/W
ORBIT 2700K ORBTA04N22AWS Satin White LED 04/5W 1000mm No Dimmable 560 lm 2700K 24º >90 104 lm/W
ORBIT 3000K ORBTA04N32ABS Satin Black LED 04/5W 1000mm No Dimmable 585 lm 3000K 24º >90 108 lm/W
ORBIT 3000K ORBTA04N32AWS Satin White LED 04/5W 1000mm No Dimmable 585 lm 3000K 24º >90 108 lm/W
ORBIT 4000K ORBTA04N42ABS Satin Black LED 04/5W 1000mm No Dimmable 618 lm 4000K 24º >90 114 lm/W
ORBIT 4000K ORBTA04N42AWS Satin White LED 04/5W 1000mm No Dimmable 618 lm 4000K 24º >90 114 lm/W
