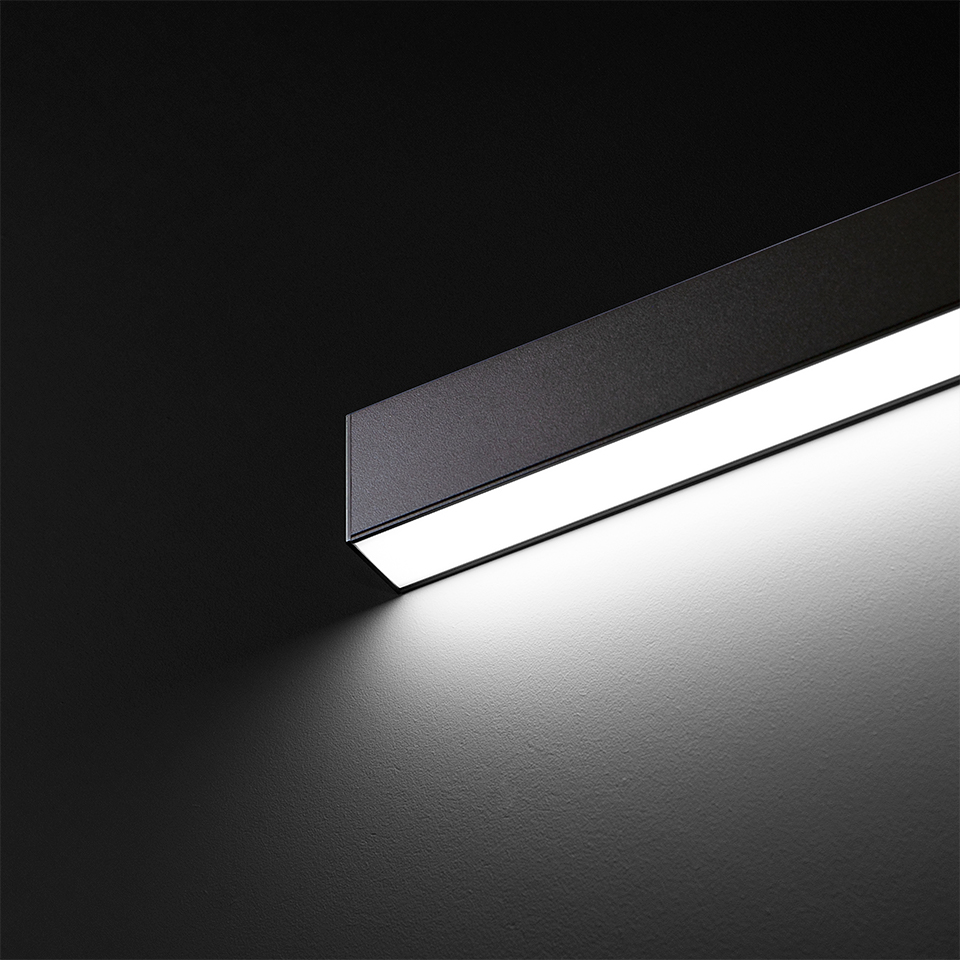

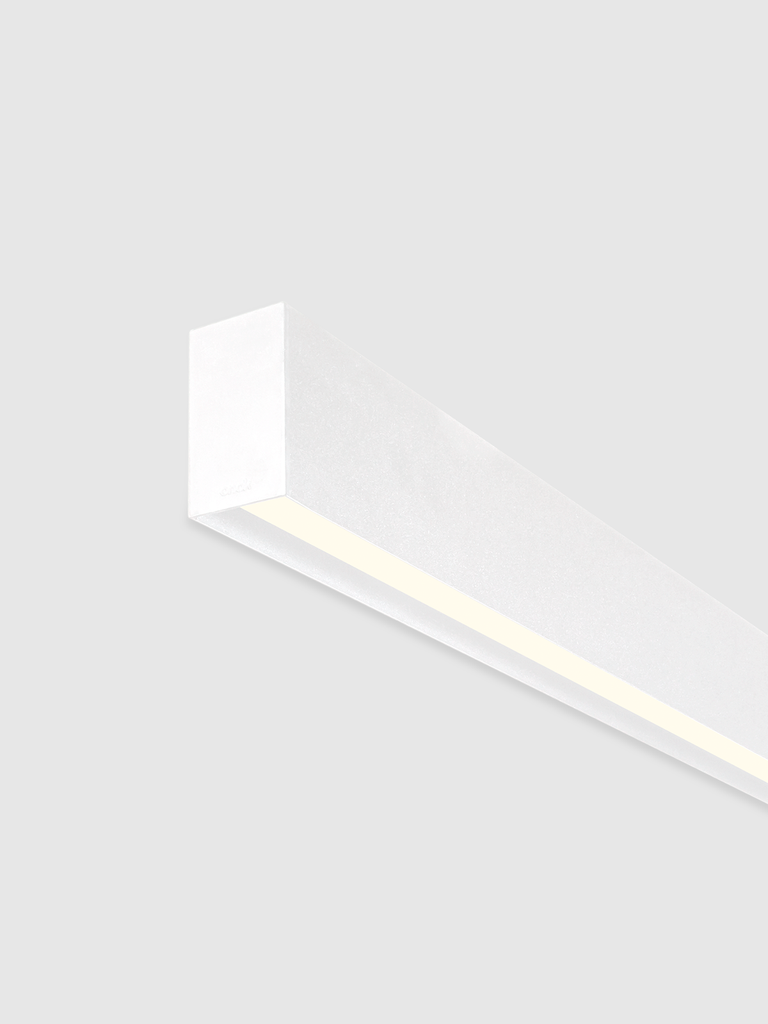

Linear profile for wall installation with continuous emission. Available in different sizes, colour temperatures and diffusers

  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Line Wall Line Wall
Installation Instructions Technical Datasheet CE Declaration General Guarantee Conditions Extended Guarantee Conditions LED Efficiency Label LED technical datasheet TW LED technical datasheet Driver 21W technical datasheet Driver 42W technical datasheet Test report certificate Test report LINE WALL - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Line Wall
Line Wall
Line Wall
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Line Wall 2700K LNEAA11D29ABS Satin Black LED 112 cm / 22W Dali 3586 lm 2700K >90º >90 163 lm/W
Line Wall 2700K LNEAA11D29AWS Satin White LED 112 cm / 22W Dali — 2700K >90º >90 —
Line Wall 2700K LNEAA11D29CBS Satin Black LED 112 cm / 22W Dali — 2700K >90º >90 —
Line Wall 2700K LNEAA11D29CWS Satin White LED 112 cm / 22W Dali — 2700K >90º >90 —
Line Wall 3000K LNEAA11D39ABS Satin Black LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 3000K LNEAA11D39AWS Satin White LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 3000K LNEAA11D39CBS Satin Black LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 3000K LNEAA11D39CWS Satin White LED 112 cm / 22W Dali 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 4000K LNEAA11D49ABS Satin Black LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 4000K LNEAA11D49AWS Satin White LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 4000K LNEAA11D49CBS Satin Black LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 4000K LNEAA11D49CWS Satin White LED 112 cm / 22W Dali 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 2700K LNEAA11N29ABS Satin Black LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA11N29AWS Satin White LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA11N29CBS Satin Black LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA11N29CWS Satin White LED 112 cm / 22W No Dimmable — 2700K >90º >90 —
Line Wall 3000K LNEAA11N39ABS Satin Black LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 3000K LNEAA11N39AWS Satin White LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 3000K LNEAA11N39CBS Satin Black LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 3000K LNEAA11N39CWS Satin White LED 112 cm / 22W No Dimmable 3.720 lm 3000K >90º >90 169 lm/W
Line Wall 4000K LNEAA11N49ABS Satin Black LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 4000K LNEAA11N49AWS Satin White LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 4000K LNEAA11N49CBS Satin Black LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 4000K LNEAA11N49CWS Satin White LED 112 cm / 22W No Dimmable 3.999 lm 4000K >90º >90 182 lm/W
Line Wall 2700K LNEAA14D29ABS Satin Black LED 140 cm / 28W Dali 4564 lm 2700K >90º >90 163 lm/W
Line Wall 2700K LNEAA14D29AWS Satin White LED 140 cm / 28W Dali — 2700K >90º >90 —
Line Wall 2700K LNEAA14D29CBS Satin Black LED 140 cm / 28W Dali — 2700K >90º >90 —
Line Wall 2700K LNEAA14D29CWS Satin White LED 140 cm / 28W Dali — 2700K >90º >90 —
Line Wall 3000K LNEAA14D39ABS Satin Black LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA14D39AWS Satin White LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA14D39CBS Satin Black LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA14D39CWS Satin White LED 140 cm / 28W Dali 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 4000K LNEAA14D49ABS Satin Black LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA14D49AWS Satin White LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA14D49CBS Satin Black LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA14D49CWS Satin White LED 140 cm / 28W Dali 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 2700K LNEAA14N29ABS Satin Black LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA14N29AWS Satin White LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA14N29CBS Satin Black LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA14N29CWS Satin White LED 140 cm / 28W No Dimmable — 2700K >90º >90 —
Line Wall 3000K LNEAA14N39ABS Satin Black LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA14N39AWS Satin White LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA14N39CBS Satin Black LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA14N39CWS Satin White LED 140 cm / 28W No Dimmable 4.650 lm 3000K >90º >90 166 lm/W
Line Wall 4000K LNEAA14N49ABS Satin Black LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA14N49AWS Satin White LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA14N49CBS Satin Black LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA14N49CWS Satin White LED 140 cm / 28W No Dimmable 4.998 lm 4000K >90º >90 179 lm/W
Line Wall 2700K LNEAA70D29ABS Satin Black LED 70 cm / 14W Dali 2282 lm 2700K >90º >90 163 lm/W
Line Wall 2700K LNEAA70D29AWS Satin White LED 70 cm / 14W Dali — 2700K >90º >90 —
Line Wall 2700K LNEAA70D29CBS Satin Black LED 70 cm / 14W Dali — 2700K >90º >90 —
Line Wall 2700K LNEAA70D29CWS Satin White LED 70 cm / 14W Dali — 2700K >90º >90 —
Line Wall 3000K LNEAA70D39ABS Satin Black LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA70D39AWS Satin White LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA70D39CBS Satin Black LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA70D39CWS Satin White LED 70 cm / 14W Dali 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 4000K LNEAA70D49ABS Satin Black LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA70D49AWS Satin White LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA70D49CBS Satin Black LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA70D49CWS Satin White LED 70 cm / 14W Dali 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 2700K LNEAA70N29ABS Satin Black LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA70N29AWS Satin White LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA70N29CBS Satin Black LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line Wall 2700K LNEAA70N29CWS Satin White LED 70 cm / 14W No Dimmable — 2700K >90º >90 —
Line Wall 3000K LNEAA70N39ABS Satin Black LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA70N39AWS Satin White LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA70N39CBS Satin Black LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 3000K LNEAA70N39CWS Satin White LED 70 cm / 14W No Dimmable 2.325 lm 3000K >90º >90 166 lm/W
Line Wall 4000K LNEAA70N49ABS Satin Black LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA70N49AWS Satin White LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA70N49CBS Satin Black LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
Line Wall 4000K LNEAA70N49CWS Satin White LED 70 cm / 14W No Dimmable 2.499 lm 4000K >90º >90 179 lm/W
