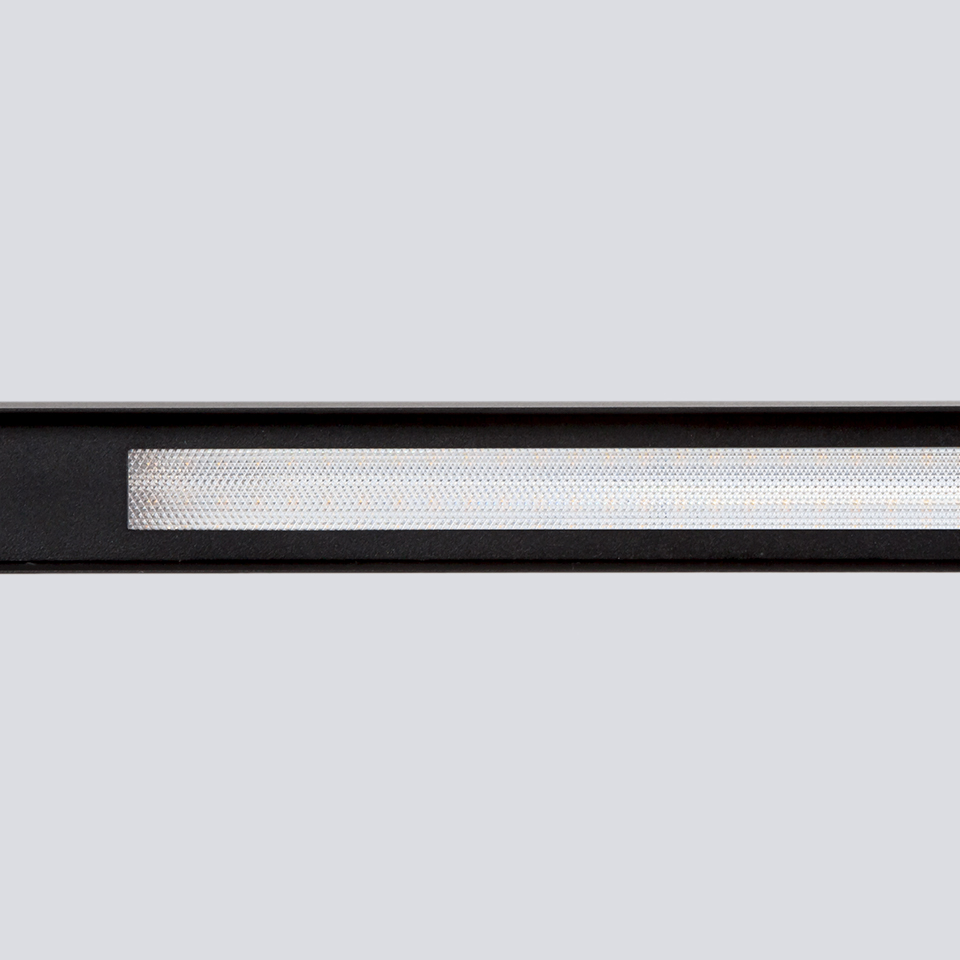

Suspended linear profile for continuous lighting. Integration in architectural project
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Click Straight 5 Click Straight 5
Technical Datasheet CE Declaration for Surface and Pendant CE Declaration for Recessed Click Catalogue Bluetooth Catalogue Installation Instructions General Guarantee Conditions EXTENDED Guarantee Conditions LED Efficiency Label Driver technical datasheet LED technical datasheet CLICK STRAIGHT - LDT files
Technical drawing
LED flux—
LED power consumption—
Luminous efficiency—
CRI—
Driver LED—
Light temperature—
Beam angle—
IP protection—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Click Straight 5 2700K KST5A05D29CBS Satin Black LED ≈ 5W / >1.200 lm Dali 675 lm 2700K >90º >90 121 lm/W
Click Straight 5 2700K KST5A05D29CWS Satin White LED ≈ 5W / >1.200 lm Dali — 2700K >90º >90 —
Click Straight 5 3000K KST5A05D39CBS Satin Black LED ≈ 5W / >1.200 lm Dali 1.270 lm 3000K Expansiveº >90 227 lm/W
Click Straight 5 3000K KST5A05D39CWS Satin White LED ≈ 5W / >1.200 lm Dali 1.270 lm 3000K Expansiveº >90 227 lm/W
Click Straight 5 4000K KST5A05D49CBS Satin Black LED ≈ 5W / >1.200 lm Dali 1.356 lm 4000K Expansiveº >90 242 lm/W
Click Straight 5 4000K KST5A05D49CWS Satin White LED ≈ 5W / >1.200 lm Dali 1.356 lm 4000K Expansiveº >90 242 lm/W
Click Straight 5 2700K KST5A05K29CBS Satin Black LED ≈ 5W / >1.200 lm Casambi — 2700K >90º >90 —
Click Straight 5 2700K KST5A05K29CWS Satin White LED ≈ 5W / >1.200 lm Casambi — 2700K >90º >90 —
Click Straight 5 3000K KST5A05K39CBS Satin Black LED ≈ 5W / >1.200 lm Casambi 1.270 lm 3000K Expansiveº >90 227 lm/W
Click Straight 5 3000K KST5A05K39CWS Satin White LED ≈ 5W / >1.200 lm Casambi 1.270 lm 3000K Expansiveº >90 227 lm/W
Click Straight 5 4000K KST5A05K49CBS Satin Black LED ≈ 5W / >1.200 lm Casambi 1.356 lm 4000K Expansiveº >90 242 lm/W
Click Straight 5 4000K KST5A05K49CWS Satin White LED ≈ 5W / >1.200 lm Casambi 1.356 lm 4000K Expansiveº >90 242 lm/W
Click Straight 5 2700K KST5A05N29CBS Satin Black LED ≈ 5W / >1.200 lm No Dimmable — 2700K >90º >90 —
Click Straight 5 2700K KST5A05N29CWS Satin White LED ≈ 5W / >1.200 lm No Dimmable — 2700K >90º >90 —
Click Straight 5 3000K KST5A05N39CBS Satin Black LED ≈ 5W / >1.200 lm No Dimmable 1.270 lm 3000K Expansiveº >90 227 lm/W
Click Straight 5 3000K KST5A05N39CWS Satin White LED ≈ 5W / >1.200 lm No Dimmable 1.270 lm 3000K Expansiveº >90 227 lm/W
Click Straight 5 4000K KST5A05N49CBS Satin Black LED ≈ 5W / >1.200 lm No Dimmable 1.356 lm 4000K Expansiveº >90 242 lm/W
Click Straight 5 4000K KST5A05N49CWS Satin White LED ≈ 5W / >1.200 lm No Dimmable 1.356 lm 4000K Expansiveº >90 242 lm/W
