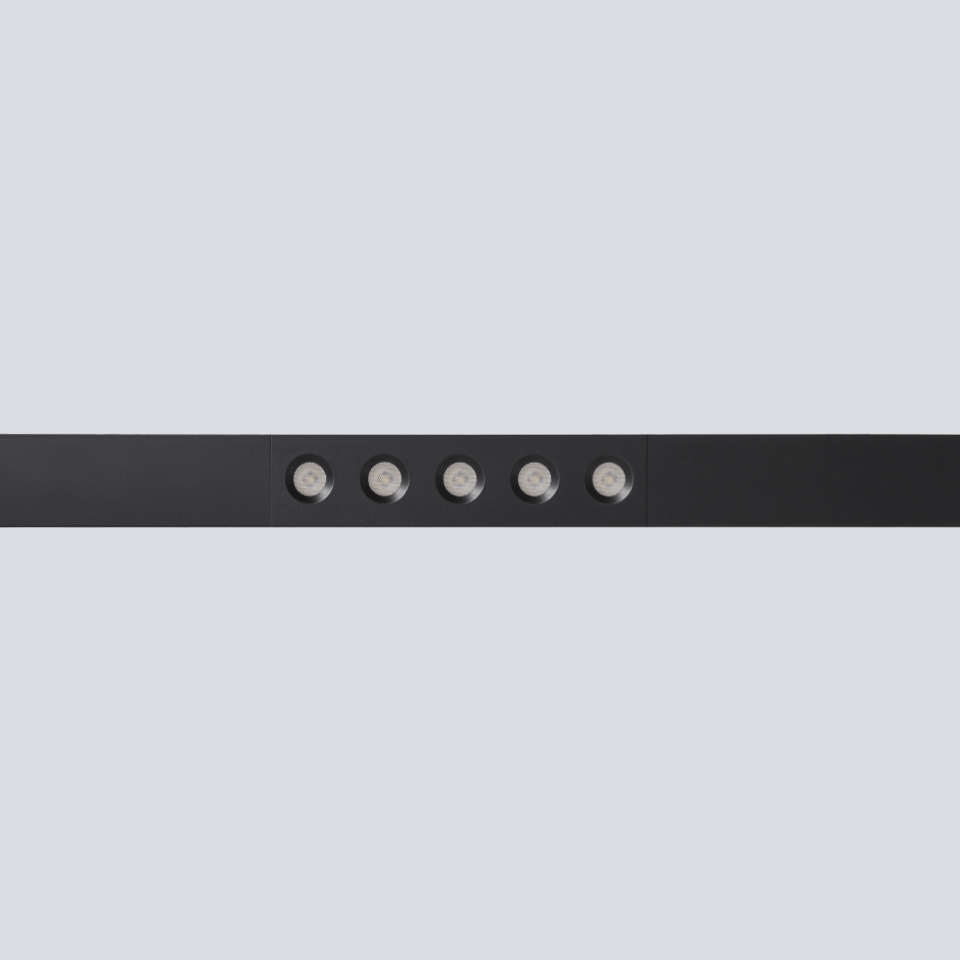

One-metre linear profile with two five-point modules at the ends. Uniform emission with architectural integration.
  • Socket
  • Output
  • Control
  • Colour Temperature
  • Beam Angle
  • Complements
  • Finish

This combination does not exist.

Contact Us
Click Dot Click Dot
Technical Datasheet Promotional Leaflet Technical Catalogue Installation Instructions General Guarantee Conditions 2D - dwg 2D - dxf 3D - step Extended Guarantee Conditions LED Efficiency Label CE Declaration for Surface and Pendant CE Declaration for Recessed CLICK DOT - LDT files
Dibujo técnico
Flujo LED—
Consumo LED—
Eficiencia lumínica—
CRI—
Driver LED—
Temperatura de luz—
Ángulo apertura—
Protección IP—
Modelo Ref. Color Fuente Potencia Regulación Flujo lum. Temp. Ángulo CRI Eficiencia
Click Dot 2700K CDTXA05D23ABS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.000 lm 2700K 30º >90 —
Click Dot 2700K CDTXA05D23AWS Satin White LED 5P / ≈ 10W / >1.000 lm Dali 1.000 lm 2700K 30º >90 —
Click Dot 3000K CDTXA05D33ABS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.097 lm 3000K 30º >90 83 lm/W
Click Dot 3000K CDTXA05D33AWS Satin White LED 5P / ≈ 10W / >1.000 lm Dali 1.097 lm 3000K 30º >90 83 lm/W
Click Dot 4000K CDTXA05D43ABS Satin Black LED 5P / ≈ 10W / >1.000 lm Dali 1.155 lm 4000K 30º >90 83 lm/W
Click Dot 4000K CDTXA05D43AWS Satin White LED 5P / ≈ 10W / >1.000 lm Dali 1.155 lm 4000K 30º >90 83 lm/W
Click Dot 2700K CDTXA05N23ABS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.000 lm 2700K 30º >90 —
Click Dot 2700K CDTXA05N23AWS Satin White LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.000 lm 2700K 30º >90 —
Click Dot 3000K CDTXA05N33ABS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.097 lm 3000K 30º >90 83 lm/W
Click Dot 3000K CDTXA05N33AWS Satin White LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.097 lm 3000K 30º >90 83 lm/W
Click Dot 4000K CDTXA05N43ABS Satin Black LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.155 lm 4000K 30º >90 83 lm/W
Click Dot 4000K CDTXA05N43AWS Satin White LED 5P / ≈ 10W / >1.000 lm No Dimmable 1.155 lm 4000K 30º >90 83 lm/W
Click Dot 2700K CDTXA10D23ABS Satin Black LED 10P / ≈ 21W / >2.000 lm Dali 2.058 lm 2700K 30º >90 —
Click Dot 2700K CDTXA10D23AWS Satin White LED 10P / ≈ 21W / >2.000 lm Dali 2.058 lm 2700K 30º >90 —
Click Dot 3000K CDTXA10D33ABS Satin Black LED 10P / ≈ 21W / >2.000 lm Dali 2.158 lm 3000K 30º >90 68 lm/W
Click Dot 3000K CDTXA10D33AWS Satin White LED 10P / ≈ 21W / >2.000 lm Dali 2.158 lm 3000K 30º >90 68 lm/W
Click Dot 4000K CDTXA10D43ABS Satin Black LED 10P / ≈ 21W / >2.000 lm Dali 2.310 lm 4000K 30º >90 68 lm/W
Click Dot 4000K CDTXA10D43AWS Satin White LED 10P / ≈ 21W / >2.000 lm Dali 2.310 lm 4000K 30º >90 68 lm/W
Click Dot 2700K CDTXA10N23ABS Satin Black LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.058 lm 2700K 30º >90 —
Click Dot 2700K CDTXA10N23AWS Satin White LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.058 lm 2700K 30º >90 —
Click Dot 3000K CDTXA10N33ABS Satin Black LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.158 lm 3000K 30º >90 68 lm/W
Click Dot 3000K CDTXA10N33AWS Satin White LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.158 lm 3000K 30º >90 68 lm/W
Click Dot 4000K CDTXA10N43ABS Satin Black LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.310 lm 4000K 30º >90 68 lm/W
Click Dot 4000K CDTXA10N43AWS Satin White LED 10P / ≈ 21W / >2.000 lm No Dimmable 2.310 lm 4000K 30º >90 68 lm/W
